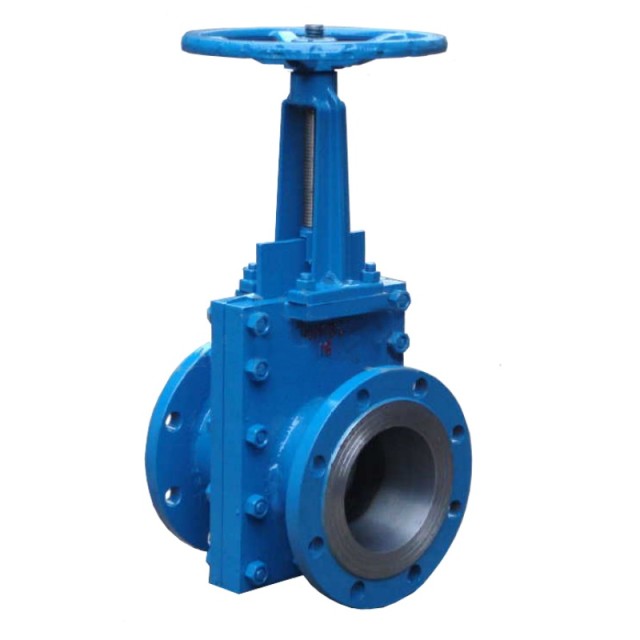

Slurry Valve

Slurry Valve

Structural Features

• Mostly adopt a knife gate structure (knife-type slurry valve)

• Straight flow path with no dead angles, less prone to slurry accumulation and slag blockage

• Valve body, gate, and sealing surfaces are all treated with wear-resistant materials

• Common materials: polyurethane lining, wear-resistant alloy, ceramic, wear-resistant rubber

• Connections are mostly wafer type or flange type, predominantly for large diameters
Online Inquiry Contact Us

Product Description

Core Advantages



1. Superior Wear Resistance: Slurry contains a lot of fine sand and mineral powder; ordinary valves wear through in just a few months, while slurry valves are much more durable.

2. Anti-clogging and Anti-entanglement: The blade has a shearing action, cutting through fibers, clumps, and particles.

3. Reliable Sealing: Even with dirty media, it can close tightly well, minimizing internal leakage.

4. Bidirectional Pressure Resistance and Impact Resistance: Suitable for pipelines with large pressure fluctuations, such as tailings, mud, and slag slurries.

5. Easy Maintenance: Wear-resistant bushings and blades can be replaced individually, eliminating the need to replace the entire valve.



Applicable Operating Conditions



• Media: Iron ore slurry, copper ore slurry, aluminum ore slurry, tailings slurry, mud, slag slurry, sand-water mixtures

• Industries: Mining, metallurgy, power plant ash removal, coal, tailings transportation

• Temperature: Generally ≤ 120℃

• Pressure: Primarily PN10 and PN16

• Characteristics: High solids content, high wear, ordinary valves are easily damaged.
